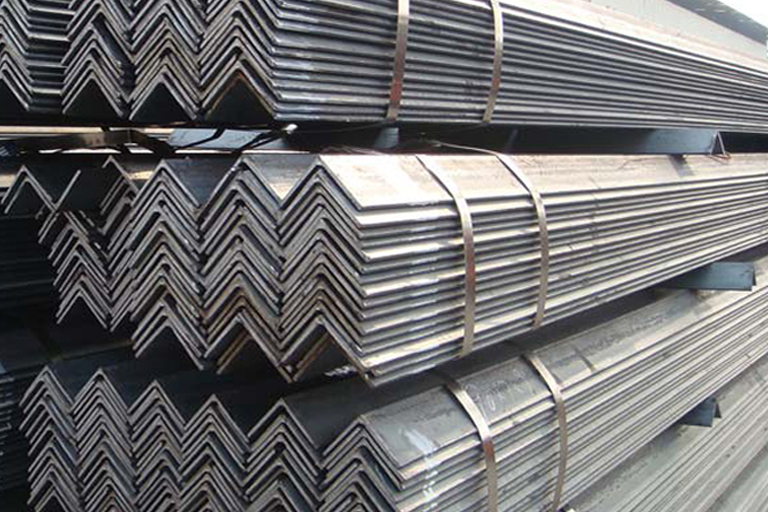

Equal Angles
Avail form us the superior quality Steel angles. These are one of the most commonly used Steel Structures in the construction industry. The basic shape of the Angle Lends it many practical uses. There are basically 2 types of Angle.
1) Equal Angle
2) Unequal Angle
Our range of Mild Steel Angles has excellent welding, drilling, machining and punching characteristics. Smaller sizes of steel angle stock are often used in a variety of machine shops such as automotive shops and general fabrication. Larger sizes are used in building trades as a structural material.
Specifications
| Size mm | Section Weight Kg/mtr | |||||||||||||
| Thickness mm | ||||||||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 24 | |
| 35 | 1.06 | 2.10 | 2.60 | 3.00 | - | - | - | - | - | - | - | - | - | - |
| 40 | 1.80 | 2.40 | 3.00 | 3.50 | - | - | - | - | - | - | - | - | - | - |
| 45 | 2.10 | 2.70 | 3.40 | 4.00 | - | - | - | - | - | - | - | - | - | - |
| 50 | 2.30 | 3.00 | 3.80 | 4.50 | 5.15 | 5.82 | 7.90 | - | - | - | - | - | - | - |
| 55 | - | 3.30 | 4.10 | 4.90 | - | 6.46 | 8.6 | - | - | - | - | - | - | - |
| 60 | - | 3.70 | 4.50 | 5.40 | - | 7.09 | 9.40 | - | - | - | - | - | - | - |
| 65 | - | 4.00 | 4.90 | 5.80 | 6.830 | 7.73 | 10.200 | - | - | - | - | - | - | - |
| 70 | - | - | 5.30 | 6.30 | 7.380 | 8.35 | 11.00 | - | - | - | - | - | - | - |
| 75 | - | - | 5.70 | 6.80 | - | 8.99 | 11.800 | - | - | - | - | - | - | - |
| 80 | - | - | - | 6.30 | - | 9.63 | 13.400 | 14.00 | - | - | - | - | - | - |
| 90 | - | - | - | 6.80 | 9.610 | 10.90 | 14.900 | 15.800 | - | - | - | - | - | - |
| 100 | - | - | - | 7.30 | 10.700 | 12.20 | 16.600 | 17.70 | 21.90 | - | - | - | - | - |
| 110 | - | - | - | 8.20 | - | 13.50 | 18.200 | 19.700 | - | 25.700 | - | - | - | - |
| 120 | - | - | - | 9.20 | - | 14.71 | 19.700 | 21.600 | 26.600 | 30.700 | - | - | - | - |
| 130 | - | - | - | - | - | 16.00 | 22.900 | 23.500 | - | 35.800 | - | - | - | - |
| 150 | - | - | - | - | - | - | - | 27.300 | 33.800 | - | 40.100 | 44.100 | - | - |
